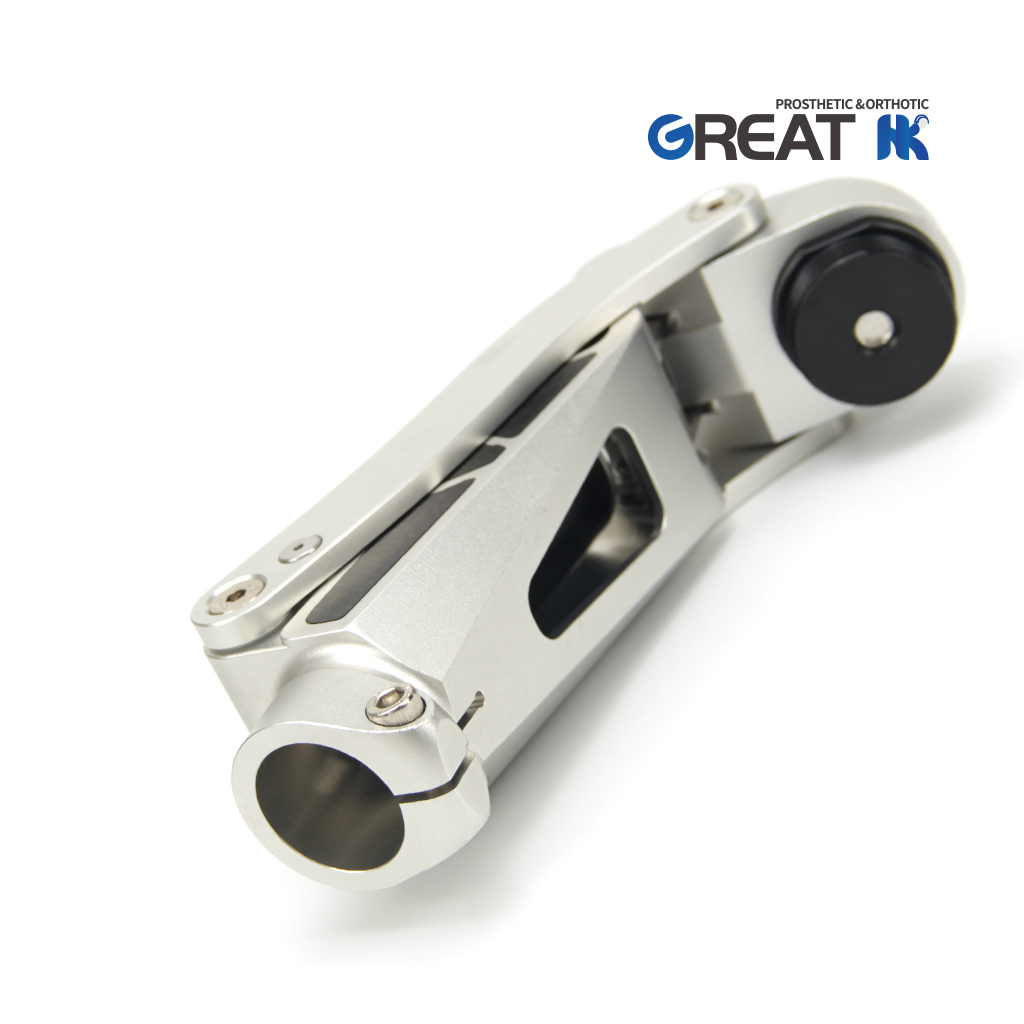

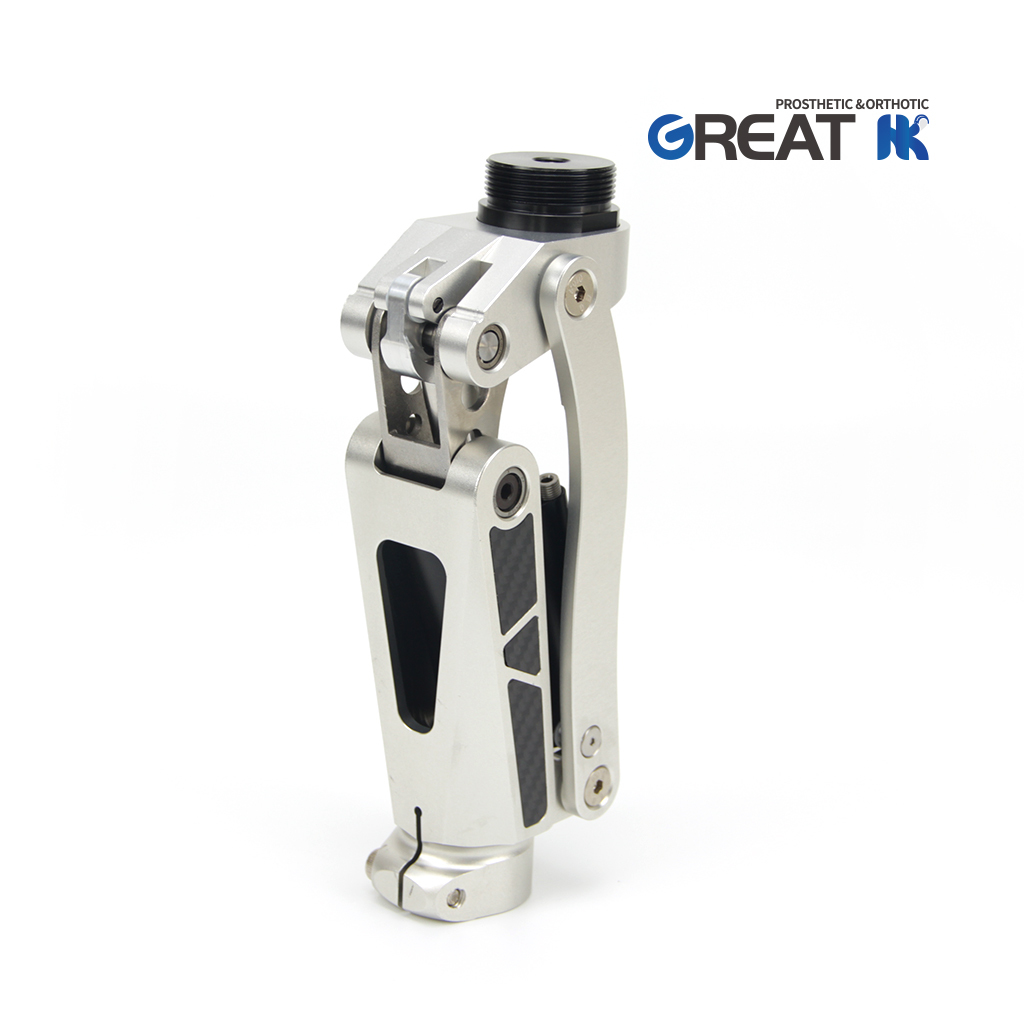

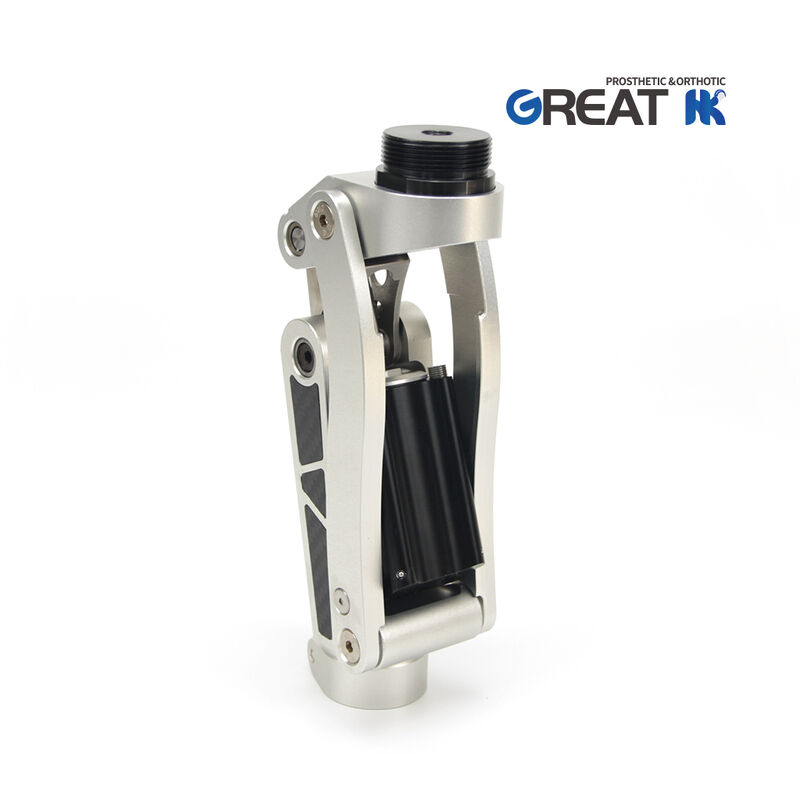

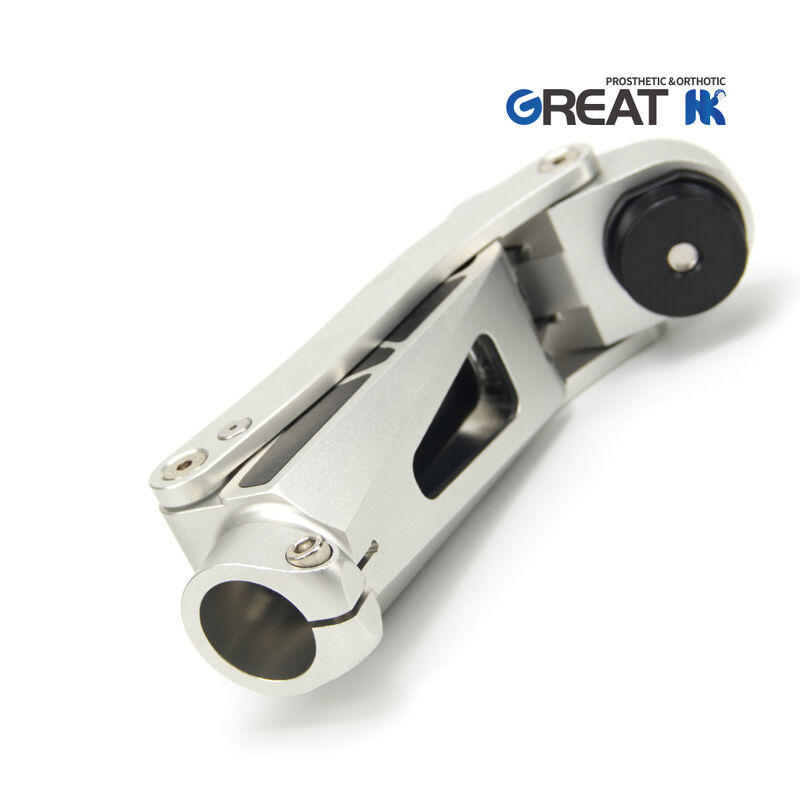

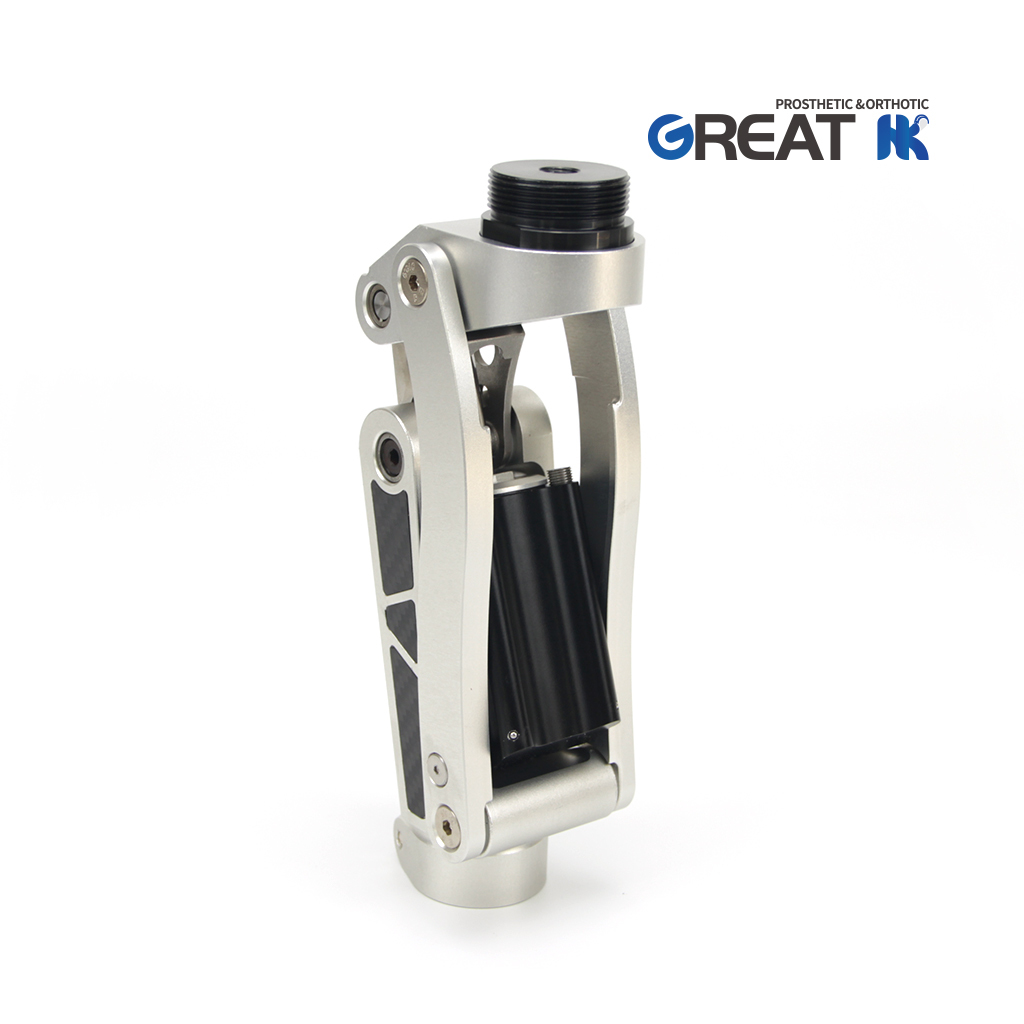

The Model K15AL Prosthetic Geometric Lock Pneumatic Knee Joint is a mechanical knee component designed for transfemoral (above-knee) prosthetic systems. This advanced knee joint integrates a polycentric geometric locking mechanism with a pneumatic swing control system to provide stability during stance phase and smooth motion during swing phase.
This design significantly improves user safety, gait stability, and walking efficiency, enabling amputees to achieve a more natural walking pattern. The knee joint is specifically engineered for moderate-activity prosthetic users (K1-K2 mobility levels) in daily walking and rehabilitation applications.
The knee utilizes a polycentric linkage system (four-bar or five-bar mechanism) that creates a geometric locking effect when the prosthesis is loaded. During the stance phase, the linkage structure stabilizes the knee and prevents unintended flexion, enhancing safety and balance.

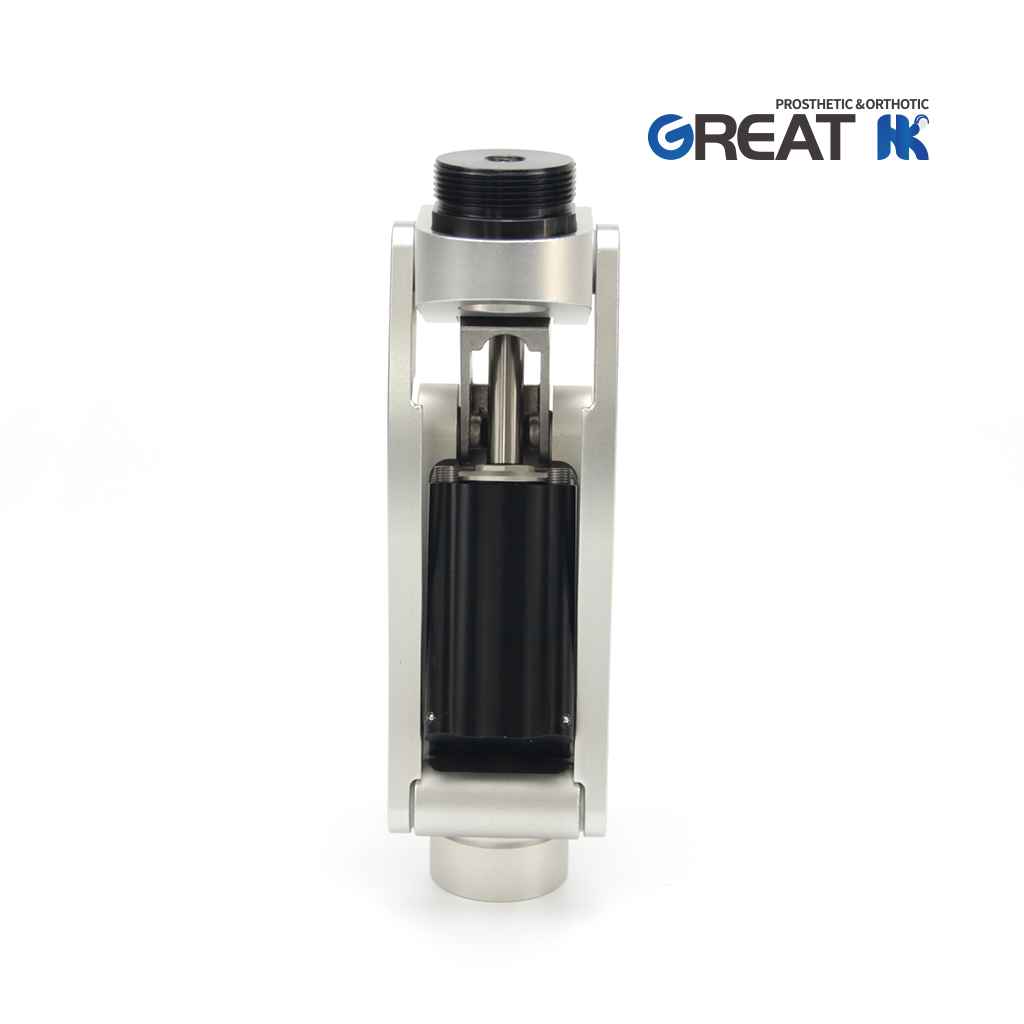

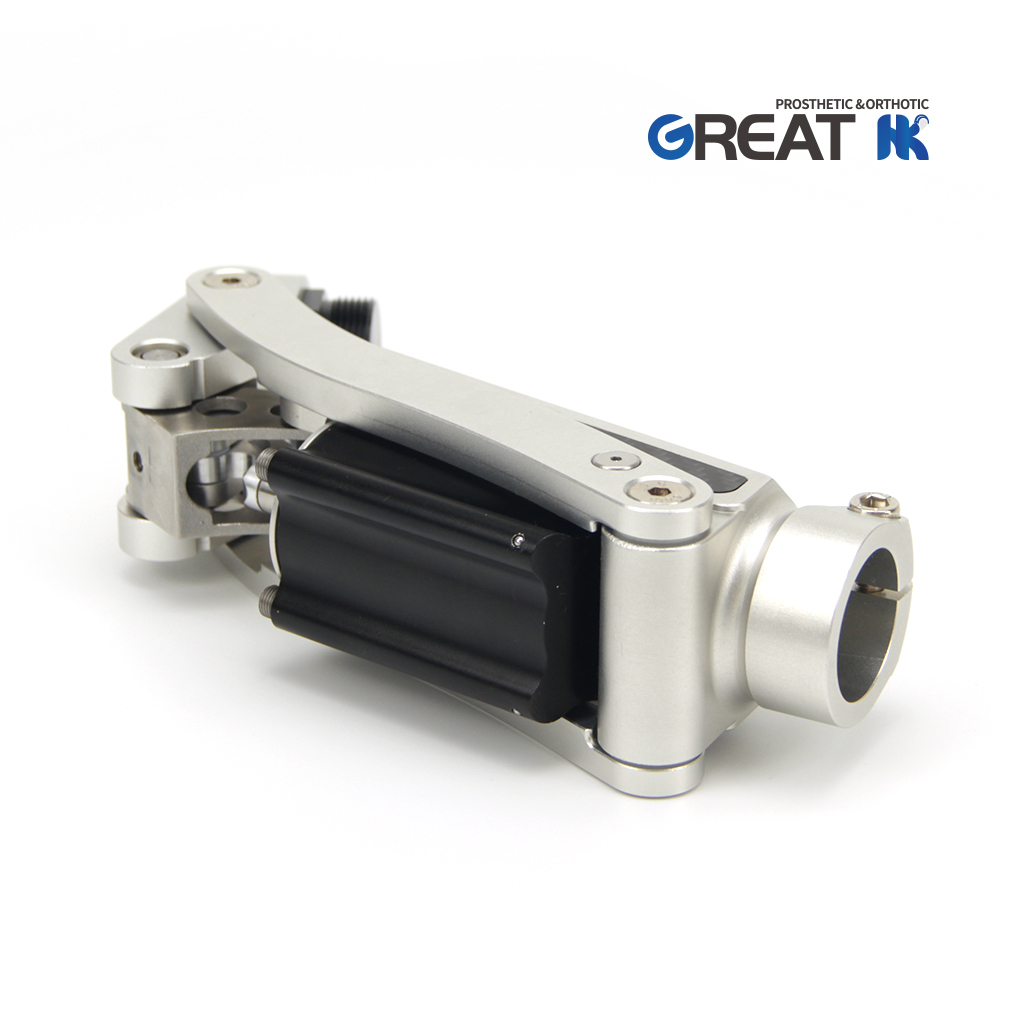

The internal pneumatic cylinder provides air-based resistance to control knee flexion and extension during the swing phase. This system regulates the swing speed and enables smoother, more natural leg movement.
The multi-axis linkage design simulates the biomechanics of the human knee joint. It shortens the effective limb length during swing phase, improving toe clearance and reducing the risk of tripping.
When the prosthetic foot contacts the ground and bears weight, the geometric linkage system automatically creates a locking effect, stabilizing the knee joint and preventing accidental buckling.
When the prosthetic leg leaves the ground, the locking effect is released. The pneumatic control system regulates the knee's flexion and extension speed to provide smooth and controlled swing motion.
| Product Number |
Material |
Specification |
Part Weight |
Max. Load |
| K15AL—TH |
Aluminum |
Thread M36 |
894g |
100Kg / 220Lbs |
Q: Are you a manufacturer or a trading company?
A: We are the manufacturer, providing OEM & ODM service.
Q: How many years since your company start this business?
A: We began manufacturing prosthetics and orthotics parts since the year 2002.
Q: Did your factory Register for export and import?
A: Yes. We applied full range of documents for exportation and importation.
Q: Did your factory and products approved by any testing or certification?
A: yes. We applied CE and ISO13485 medical certification.
Q: May I apply to be one distributor or sole agent in our country to sell your products?
A: yes. This issue can be have a discussion.
Q: May I apply some free samples for testing before purchasing the full range of production?
A: Yes. sample order is acceptable. Also free sample order totally amount can’t be over USD 50.
Q: How to deal for sample order and regular order?
A:Regaring the sample order only can be arranged by fast express, such as DHL UPS TNT and so on, the charges we can check for u! For the regular order, normally we choose BY AIR or BY SEA, EXW, FOB all are acceptable.
Q: How faster u can ship out the order?
A: For sample order normally within 3 days, regual order need to negotiate before every delivery issue settle down.
Q: Which way are acceptable for the payment?
A: TT/ Paypal / Western Union
Q: Can you provide us the best price?
A: Yes, each Item have differential pricing according to quantity.
Q:What’s your Quality warranty?
A:Regarding the the metal parts all for 2 years, For silicone is 0.5-1 year.
Q: Can we visit your factory?
A: Yes, You are welcome to have a visit, u need to make an appointment with us before your coming.
